VRLA H series includes the front terminals batteries, the deep cycle batteries, the Gel batteries, the OPzV batteries and the OPzS batteries.
| Applications: | |
|
• Uninterruptable Power Supply (UPS) |
• Communication power supply |
|
• Solar power system |
• DC power supply |
|
• Alarm and security system |
• Electronic apparatus and equipment |
|
• Emergency backup power supply |
• Monitor Equipment |
|
• Auto control system |
• Electric Power System |
|
• Emergency light |
• Cable television system |
|
• Traffic Equipment |
• Medical Equipment |
Front terminals batteries
Model |
Voltage |
Capacity |
Weight (±5%) |
Dimensions (±2mm) |
Terminal | |||
|
V |
AH |
kg |
Length |
Width |
Height |
Total Height | ||
|
LFP1255FT |
12 |
55 |
15.0 |
291 |
105 |
231 |
231 |
M6 |
|
LFP-1275FT |
12 |
75 |
24.5 |
561 |
115 |
187 |
187 |
M6 |
|
LFP-12100FT |
12 |
100 |
29.0 |
507 |
110 |
238 |
238 |
M6 |
|
LFP-12105FT |
12 |
105 |
31.0 |
395 |
110 |
286 |
286 |
M6 |
|
LFP-12120FT |
12 |
120 |
36.0 |
551 |
110 |
288 |
288 |
M8 |
|
LFP-12150FT |
12 |
150 |
43.0 |
551 |
110 |
288 |
288 |
M8 |
|
LFP-12170FT |
12 |
170 |
50.5 |
546 |
125 |
323 |
325 |
M8 |
|
LFP-12180FT |
12 |
180 |
53.5 |
546 |
125 |
323 |
325 |
M8 |
|
LFP-12200FT |
12 |
200 |
57.0 |
546 |
125 |
323 |
325 |
M8 |
Deep cycle batteries
Model |
Voltage |
Capacity |
Weight (±5%) |
Dimensions（±2mm） |
Terminal | |||
|
V |
AH |
kg |
Length |
Width |
Height |
Total Height | ||
|
LFP-1207D |
12 |
7 |
2.10 |
151 |
65 |
95 |
101 |
T2 |
|
LFP-1209D |
12 |
9 |
2.57 |
151 |
65 |
95 |
101 |
T2 |
|
LFP-1210D |
12 |
10 |
3.32 |
151 |
98 |
95 |
101 |
T2 |
|
LFP-1212D |
12 |
12 |
3.45 |
151 |
98 |
95 |
101 |
T2 |
|
LFP-1218D |
12 |
18 |
5.25 |
181 |
77 |
167 |
167 |
M5 |
|
LFP-1220D |
12 |
20 |
5.75 |
181 |
77 |
167 |
167 |
M5 |
|
LFP-1225D |
12 |
24 |
7.70 |
166 |
175 |
125 |
125 |
M5 |
|
LFP-1224D |
12 |
24 |
7.60 |
166 |
125 |
175 |
175 |
M5 |
|
LFP-1228D |
12 |
28 |
8.50 |
166 |
175 |
125 |
125 |
M5 |
|
LFP-6200D |
6 |
200 |
30.0 |
323 |
178 |
224 |
224 |
M8 |
|
LFP-1240D |
12 |
40 |
12.0 |
197 |
165 |
170 |
170 |
M6 |
|
LFP-1250D |
12 |
50 |
14.0 |
197 |
165 |
170 |
170 |
M6 |
|
LFP-1255D |
12 |
55 |
16.9 |
230 |
138 |
211 |
215 |
M6 |
|
LFP-1265D |
12 |
65 |
20.3 |
350 |
167 |
179 |
183 |
M6 |
|
LFP-1270D |
12 |
70 |
21.5 |
259 |
169 |
208 |
227 |
M6 |
|
LFP-1275D |
12 |
75 |
22.5 |
259 |
169 |
208 |
227 |
M6 |
|
LFP-1290D |
12 |
90 |
26.3 |
306 |
168 |
207 |
212 |
M8 |
|
LFP-12100D |
12 |
100 |
30.5 |
330 |
171 |
214 |
220 |
M8 |
|
LFP-12120D |
12 |
120 |
35.0 |
405 |
173 |
227 |
236 |
M8 |
|
LFP-12150D |
12 |
150 |
42.0 |
483 |
170 |
240 |
240 |
M8 |
|
LFP-12180D |
12 |
180 |
54.0 |
522 |
238 |
218 |
222 |
M8 |
|
LFP-12200D |
12 |
200 |
59.5 |
522 |
238 |
218 |
222 |
M8 |
|
LFP-12230D |
12 |
230 |
61.8 |
522 |
238 |
218 |
222 |
M8 |
|
LFP-12250D |
12 |
250 |
69.0 |
522 |
269 |
220 |
223 |
M8 |
Gel batteries
Model |
Voltage |
Capacity |
Weight (±5%) |
Dimensions（±2mm） |
Terminal | |||
|
V |
AH |
kg |
Length |
Width |
Height |
Total Height | ||
|
LFP-1240G |
12 |
40 |
12.0 |
197 |
165 |
170 |
170 |
M6 |
|
LFP-1250G |
12 |
50 |
14.0 |
197 |
165 |
170 |
170 |
M6 |
|
LFP-1255G |
12 |
55 |
16.9 |
230 |
138 |
211 |
215 |
M6 |
|
LFP-1265G |
12 |
65 |
20.3 |
350 |
167 |
179 |
183 |
M6 |
|
LFP-1270G |
12 |
70 |
21.5 |
259 |
169 |
208 |
227 |
M6 |
|
LFP-1275G |
12 |
75 |
22.5 |
259 |
169 |
208 |
227 |
M6 |
|
LFP-1290G |
12 |
90 |
26.3 |
306 |
168 |
207 |
212 |
M8 |
|
LFP-12100G |
12 |
100 |
30.5 |
330 |
171 |
214 |
220 |
M8 |
|
LFP-12120G |
12 |
120 |
35.0 |
405 |
173 |
227 |
236 |
M8 |
|
LFP-12150G |
12 |
150 |
42.0 |
483 |
170 |
240 |
240 |
M8 |
|
LFP-12180G |
12 |
180 |
54.0 |
522 |
238 |
218 |
222 |
M8 |
|
LFP-12200G |
12 |
200 |
59.5 |
522 |
238 |
218 |
222 |
M8 |
|
LFP-12230G |
12 |
230 |
61.8 |
522 |
238 |
218 |
222 |
M8 |
|
LFP-12250G |
12 |
250 |
69.0 |
522 |
269 |
220 |
223 |
M8 |
|
LFP-2100G |
2 |
100 |
5.0 |
171 |
72 |
206 |
209 |
M8 |
|
LFP-2150G |
2 |
150 |
8.0 |
171 |
102 |
206 |
221 |
M8 |
|
LFP-2200G |
2 |
200 |
12.4 |
173 |
109 |
330 |
365 |
M8 |
|
LFP-2300G |
2 |
300 |
17.5 |
171 |
151 |
330 |
365 |
M8 |
|
LFP-2400G |
2 |
400 |
23.0 |
210 |
171 |
330 |
365 |
M8 |
|
LFP-2500G |
2 |
500 |
27.5 |
241 |
171 |
330 |
365 |
M8 |
|
LFP-2600G |
2 |
600 |
33.0 |
302 |
175 |
330 |
365 |
M8 |
|
LFP-2800G |
2 |
800 |
46.5 |
410 |
175 |
330 |
365 |
M8 |
|
LFP-21000G |
2 |
1000 |
57.5 |
475 |
175 |
330 |
365 |
M8 |
|
LFP-21500G |
2 |
1500 |
88.0 |
400 |
350 |
345 |
382 |
M8 |
|
LFP-22000G |
2 |
2000 |
117 |
490 |
350 |
345 |
382 |
M8 |
|
LFP-23000G |
2 |
3000 |
180 |
710 |
350 |
345 |
382 |
M8 |
OPzV batteries

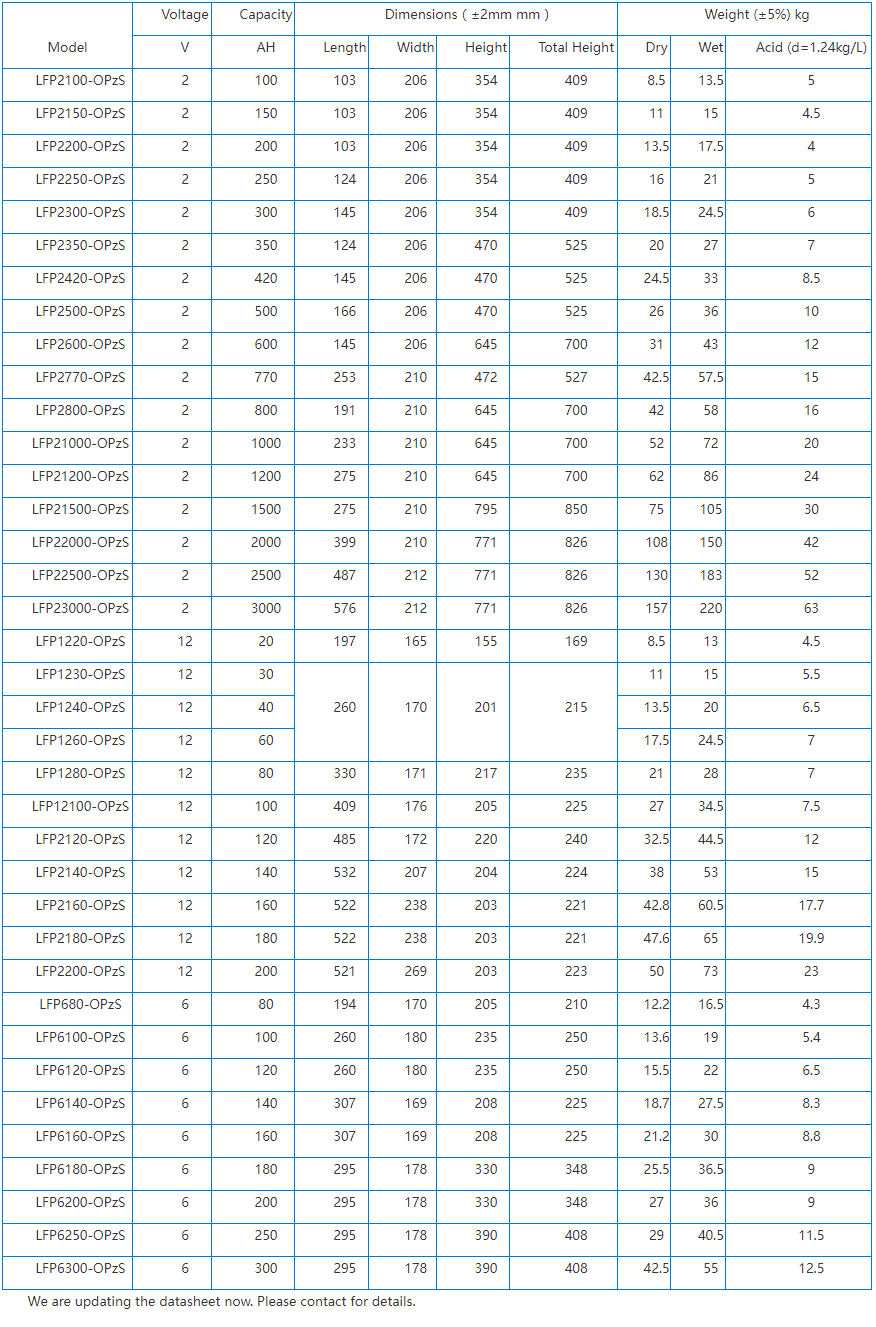

OPzS batteries
